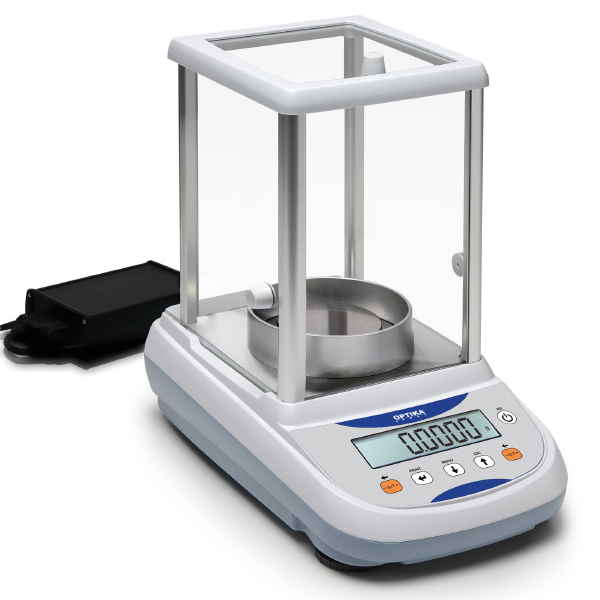

A SERIES – 0,0001 mg

A series family includes Analytical Balances that reach the highest measuring performance.
They are equipped with a highly integrated weighing cell whose benefits are high stability against temperature changes and time, quick response thanks to reduced mass and overall reduction of total number of components.
A balances have -as standard- automatic internal calibration that allows always precise measurements, practically independent from enviroment temperature changes.
All models are equipped with backlit LCD display, a glass draft windshield that protects a large volume inner measuring chamber.
Each balance is equipped with RS232 output interface.



Related Documents:





(1) If connected to optional STAT printer (CNS022)

Images are for illustrative purposes only

» Electromagnetic force restoration weighing system
» Highly integrated weighing
» Automatic internal calibration
» Efficient filtering
» LCD with backlight with adjustable contrast
» Large glass draught shield with 3 sliding doors for easy access to the items being weighed
» Plastic protection cover

Balance technical data
• Span drift (+ 10…+ 30 °C): +/– 2ppm/°C
• Dimensions LxWxH (mm): 345x215x345
• Weighing chamber dimensions LxWxH (mm): 162x171x225
• Dimensions of external electronics box LxWxH: 175x105x50 (mm), weight 500g
• Power supply 110-230Vac, 50/60Hz; output 24V 500mA 13VA
• Net Weight: 7,2Kg
• Net Wieght I-model: 7,6Kg



Ioniser technical data
• Operation modes: 2 minutes or continuosily for max 8 hours
• Ozone concentration: 0-0.05 ppm (2cm from ion source)
• Distance sample-ion source: about 5-40 cm
• Discharge time: 9s/5cm, 13s/10cm
• Ambient conditions: 0-50°C, 20-80% air humidity (non-condensing)
• Ioniser Power supply: IN AC 100-240V 50/60Hz, OUT DC 12V, 500mA

• Portable ioniser Ion-A15 (CNS0371)
• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• Serial Printer STAT, with Stastistics functions (CNS022)
• Density KIT for solids and liquids (CNS002)
• Alphanumeric external keyboard (CNS005)
• Serial to USB converter (CNS1002)
• Serial cable for serial output to printer or PC (CNS743)
• Factory Calibration certificate (CNS0333)
• Comunication KIT for balances (CNS0476)
