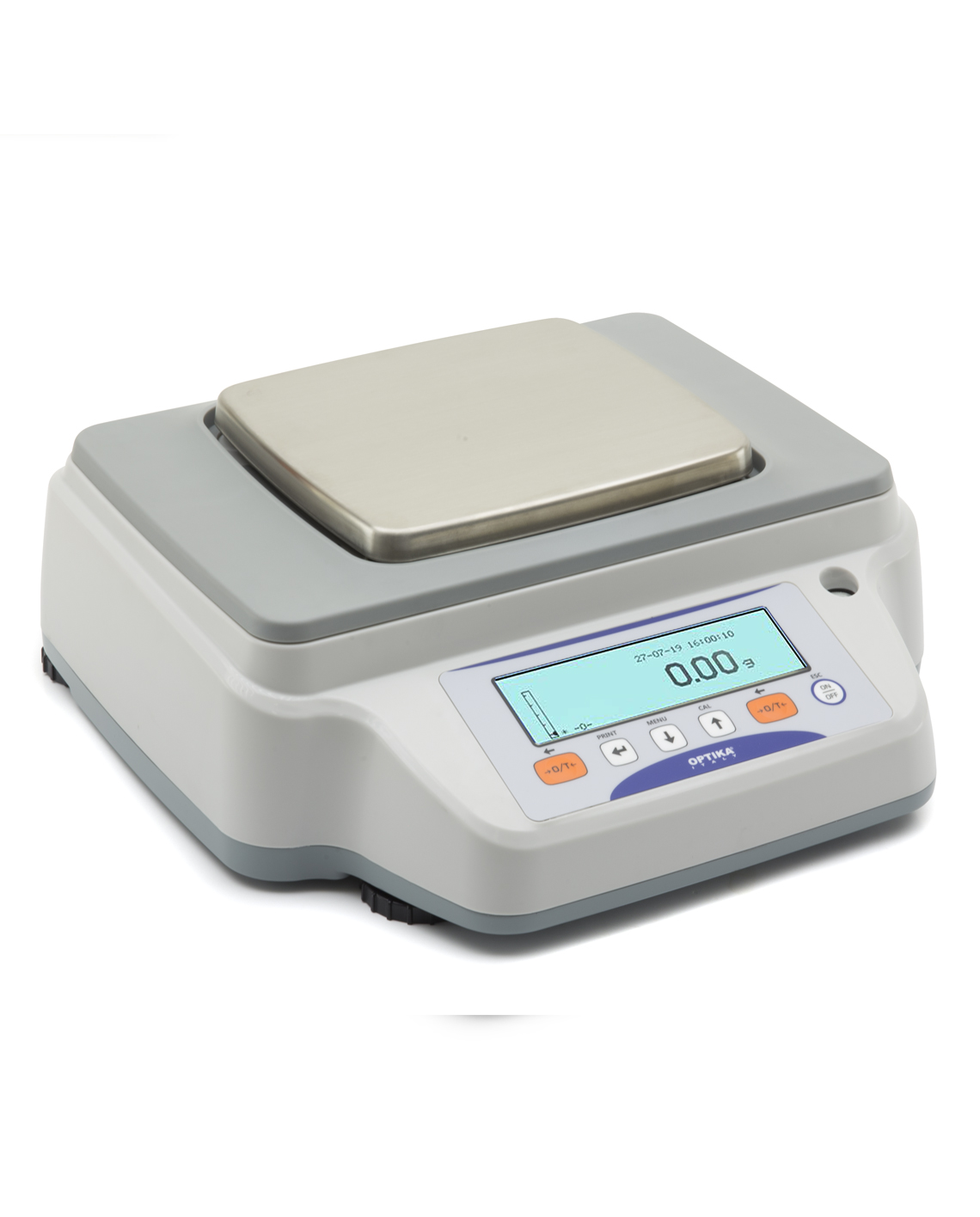

HCG Series – 0,01g – 0,1g – 0,5g – 1g

The new HCG high capacity balances bring robustness, reliability and a high level of performance.
All the HCG models are equipped with a large graphic display for easy reading and user friendly operations with many functions. RBG balances with solid structure and ergonomic
keypad have an extensive recipe database, GLP and many embedded advanced features that make them perfect for use in laboratory, compounds formulation and quality control
applications.



Related Documents:





(1) Optional external battery pack (only for 9V models) (CNS015)

Images are for illustrative purposes only

• Electromagnetic force restoration weighing system (for 0,01g resolution)
• High readability load cell weighing system (for 0,1g resolution)
• Dot Matrix graphical display
• External calibration
• GLP/ISO record of last stored calibration data
• Multi Languages (EN-DE-FR-IT-SP-PT)
• RS232 serial interface
• Formulation (Recipe)
• Checkweighing
• Percentual weighing
• Weights adding
• Animal weighing
• Max load determination (Peak hold)
• Plastic protection cover
• Under hook weighing

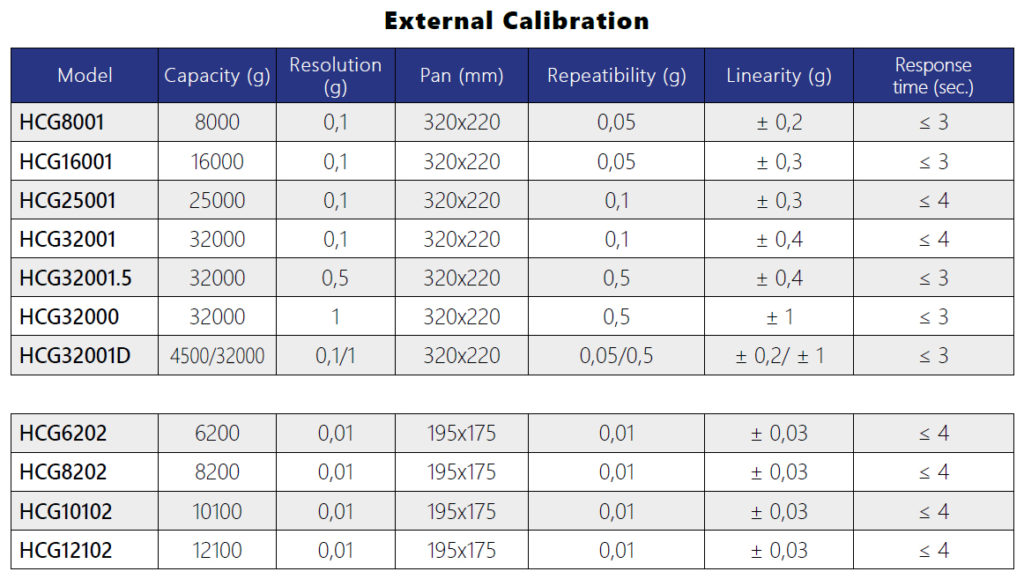

Technical data
• Span drift (+ 10…+ 30 °C): +/- 6ppm/°C
• Dimensions LxWxH (mm): 360x355x130
• Power supply 110-230Vac, 50/60Hz;
output 9V 1,2A 10VA
• Power supply 110-230Vac, 50/60Hz;
output 24V 1A 13VA (0,01g res)
• Net Weight: 8Kg (0,01 res), 7,5 kg

• Ioniser Ion-A15 (CNS0371)
• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• PC data collection software (CNS0476)
• Serial to USB converter (CNS1002)
• Serial cable for serial output to printer or PC (CNS743)
• Portable rechargeable battery pack (CNS015)
• Factory Calibration certificate (CNS0333)
