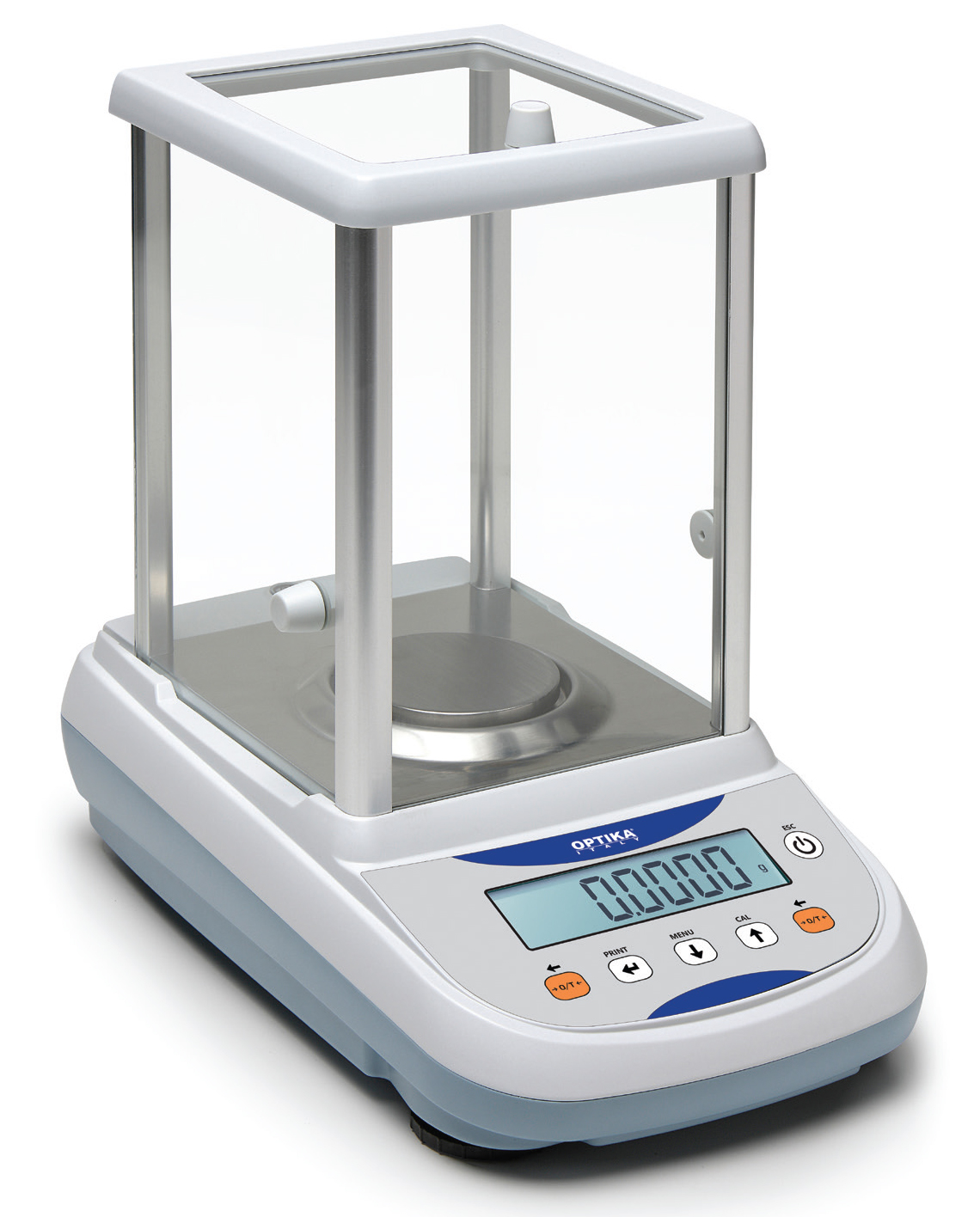

B SERIES – 0,0001 mg

A Top Quality series of Analytical Balances that combine elegance with highly reliable measuring performance. Double case structure, ergonomic keypad, external or internal calibration. Many embedded advanced features make them perfect for use in laboratory, research departments, formulation and quality control applications.



Related Documents:





(1) To order Verification please add -M to name, e.g. B214Ai-M
(2) If connected to optional STAT printer (CNS022)

Images are for illustrative purposes only

» Electromagnetic force restoration weighing system
» External or automatic internal calibration
» LCD with backlight with adjustable contrast
» Large glass draught shield with 3 sliding doors for easy access to the items being weighed
» Plastic protection cover

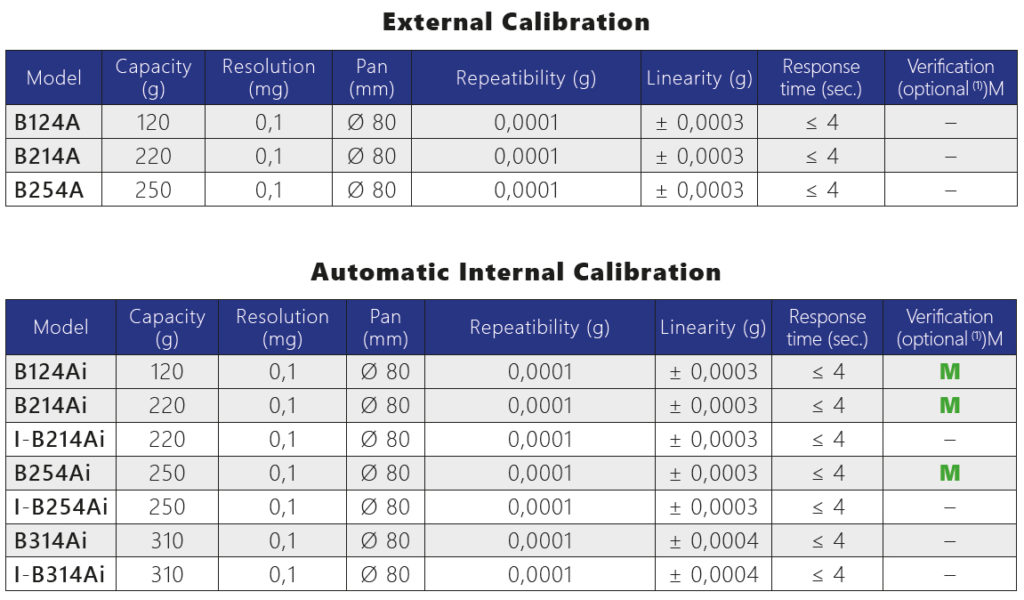

Balance technical data
• Span drift (+ 10…+ 30 °C): +/– 3ppm/°C
• Dimensions LxWxH (mm): 345x215x345
• Weighing chamber dimensions LxWxH (mm): 162x171x225
• Power supply 110-230Vac, 50/60Hz; output 24V 500mA 13VA

External calibration models
Net Weight: 6,3Kg

Internal calibration models
Net Weight: 6,6Kg
I-models net weight: 7,0Kg



Ioniser technical data
• Operation modes: 2 minutes or continuosily for max 8 hours
• Ozone concentration: 0-0.05 ppm (2cm from ion source)
• Distance sample-ion source: about 5-40 cm
• Discharge time: 9s/5cm, 13s/10cm
• Ambient conditions: 0-50°C, 20-80% air humidity (non-condensing)
• Ioniser Power supply: IN AC 100-240V 50/60Hz, OUT DC 12V, 500mA

External calibration models
Net Weight: 6,3Kg

Internal calibration models
Net Weight: 6,6Kg
I-models net weight: 7,0Kg

• Portable ioniser Ion-A15 (CNS0371)
• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• Comunication KIT for balances (CNS0476)
• Serial Printer STAT, with Stastistics functions (CNS022)
• Density KIT for solids and liquids (CNS002)
• Alphanumeric external keyboard (CNS005)
• Serial to USB converter (CNS1002)
• Factory Calibration certificate (CNS0333)
• Conformity Declaration (Verification(1))
