AG SERIES – 0,0001 mg

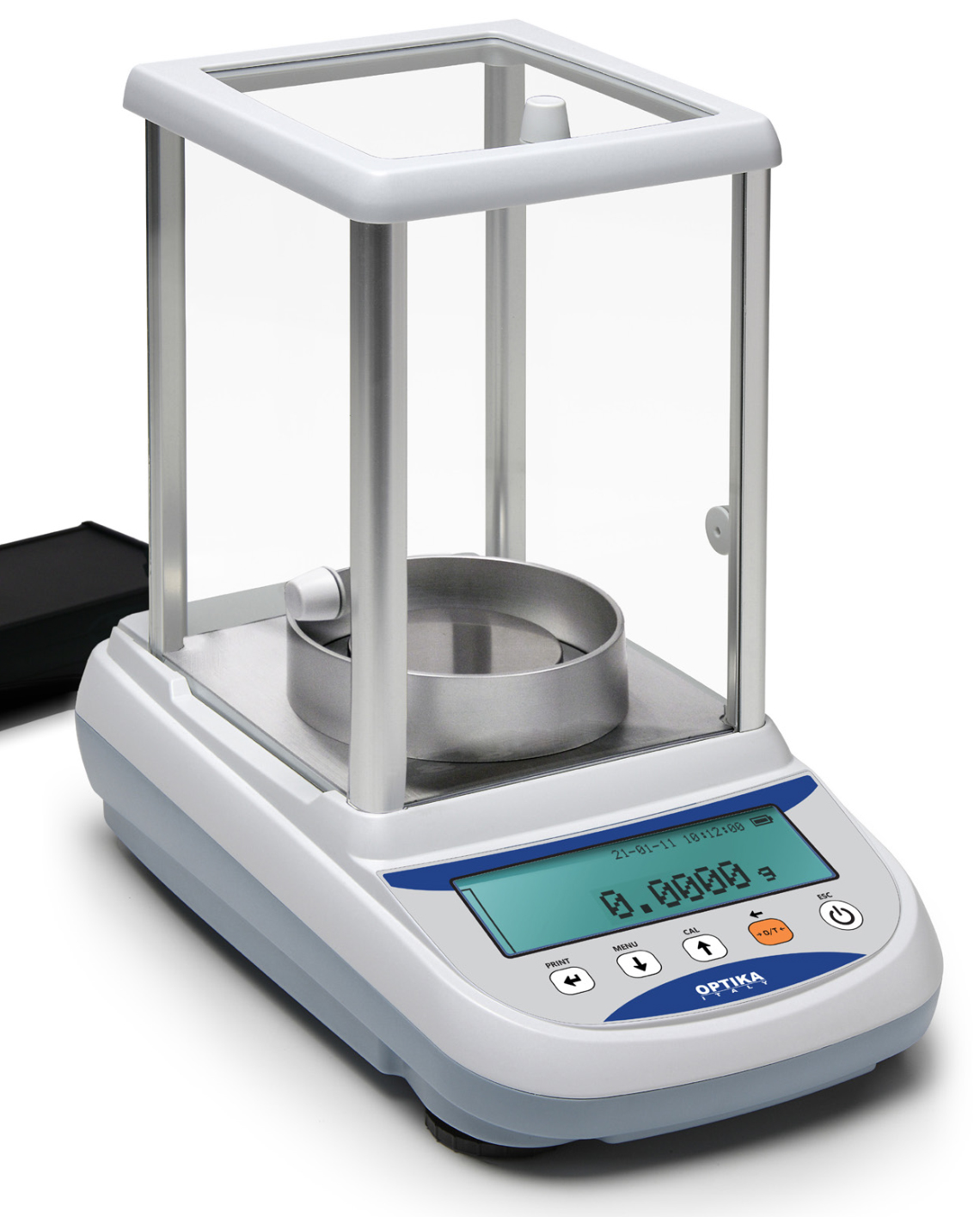

AG series family includes Analytical Balances that reach the highest measuring performance.
They are equipped with a highly integrated weighing cell whose benefits are high stability against temperature changes and time, quick response thanks to reduced mass and overall reduction of total number of components.
A balances have -as standard- automatic internal calibration that allows always precise measurements, practically independent from enviroment temperature changes.
All models are equipped a glass draft windshield that protects a large volume inner measuring chamber.
AG models are equipped with a large graphic display for easy reading and user friendly operations with many functions. Others fictures are a backlit large graphic display, a glass draft windshield that protects a large volume inner measuring chamber and RS232 output interface.
Each balance is equipped with RS232 output interface.



Related Documents:

Icon OPTIKA - Balances Catalogue - 1.87 MB
Icon OPTIKA - Serie SMG-AG - Instruction Manual - IT - 1.86 MB
Icon OPTIKA - Serie SMG-AG - Instruction Manual - EN - 1.62 MB
Icon OPTIKA - Serie SM-SMG-A-AG - Quick Guide - EN IT PT - 778.68 KB



Get a quote

Features

Images are for illustrative purposes only

» Electromagnetic force restoration weighing system
» Highly integrated weighing
» Automatic internal calibration
» Recipe database: 99 recipes can be stored, each with up to 20 ingredients.
» Large Graphic display allows efficient and easy operations.
» Multilanguage: EN-DE-FR-IT-ES-PT
» GLP/ISO record keeping of weight values with date, time and serial number.
» Large glass draught shield with 3 sliding doors for easy access to the items being weighed.
» Plastic protection cover

Technical Data

Balance technical data
• Span drift (+ 10…+ 30 °C): +/– 2ppm/°C
• Dimensions LxWxH (mm): 345x215x345
• Weighing chamber dimensions LxWxH (mm): 162x171x225
• Dimensions of external electronics box LxWxH: 175x105x50 (mm), weight 500g
• Power supply 110-230Vac, 50/60Hz; output 24V 500mA 13VA
• Net Weight: 7,2Kg
• Net Wieght I-model: 7,6Kg



Ioniser technical data
• Operation modes: 2 minutes or continuosily for max 8 hours
• Ozone concentration: 0-0.05 ppm (2cm from ion source)
• Distance sample-ion source: about 5-40 cm
• Discharge time: 9s/5cm, 13s/10cm
• Ambient conditions: 0-50°C, 20-80% air humidity (non-condensing)
• Ioniser Power supply: IN AC 100-240V 50/60Hz, OUT DC 12V, 500mA

Accessories

• Portable ioniser Ion-A15 (CNS0371)
• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• Serial Printer STAT, with Stastistics functions (CNS022)
• Density KIT for solids and liquids (CNS002)
• Alphanumeric external keyboard (CNS005)
• Serial to USB converter (CNS1002)
• Serial cable for serial output to printer or PC (CNS743)
• Factory Calibration certificate (CNS0333)
