D SERIES – 0,01g

Balances series D combine design with high level performance, guaranteed by the electromagnatic force restoration weighing cell.
Double case structure, ergonomic keypad, external or internal calibration. Many embedded advanced features make them ideal instruments for your work in laboratory, research and quality control applications.



Related Documents:





(1) Not available for verified models
(2) To order Verification please add -M to name, e.g. B214Ai-M
(3) If connected to optional STAT printer (CNS022)

Images are for illustrative purposes only

» Electromagnetic force restoration weighing system
» External or automatic internal calibration
» LCD with backlight with adjustable contrast
» Plastic protection cover
» Under hook weighing (1)
» PQ models have a rectangular pan 175x195mm

Optional functions
Paper Grammage Function (CNS219)

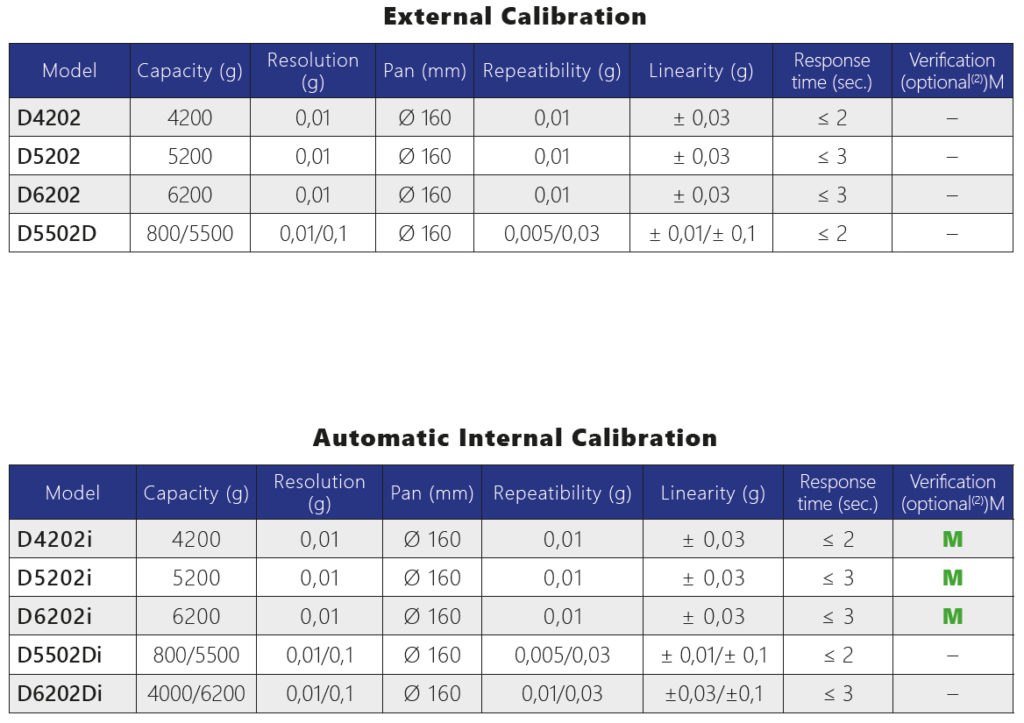

Technical data
• Span drift (+ 10…+ 30 °C): +/- 4ppm/°C
• Dimensions LxWxH (mm): 345x215x100
• Power supply 110-230Vac, 50/60Hz; output 24V 500mA 13VA

External calibration models
Net Weight: 4,6Kg

Internal calibration models
Net Weight: 5,1Kg

• Portable ioniser Ion-A15 (CNS0371)
• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• Serial Printer STAT, with Stastistics functions (CNS022)
• Density KIT for solids and liquids (CNS002)
• Serial to USB converter (CNS1002)
• Density KIT for solids (CNS001)
• Alphanumeric external keyboard (CNS005)
• Serial cable for serial output to printer or PC (CNS743)
• Factory Calibration certificate (CNS0333)
• Comunication KIT for balances (CNS0476)
• Conformity Declaration (Verification(2))
