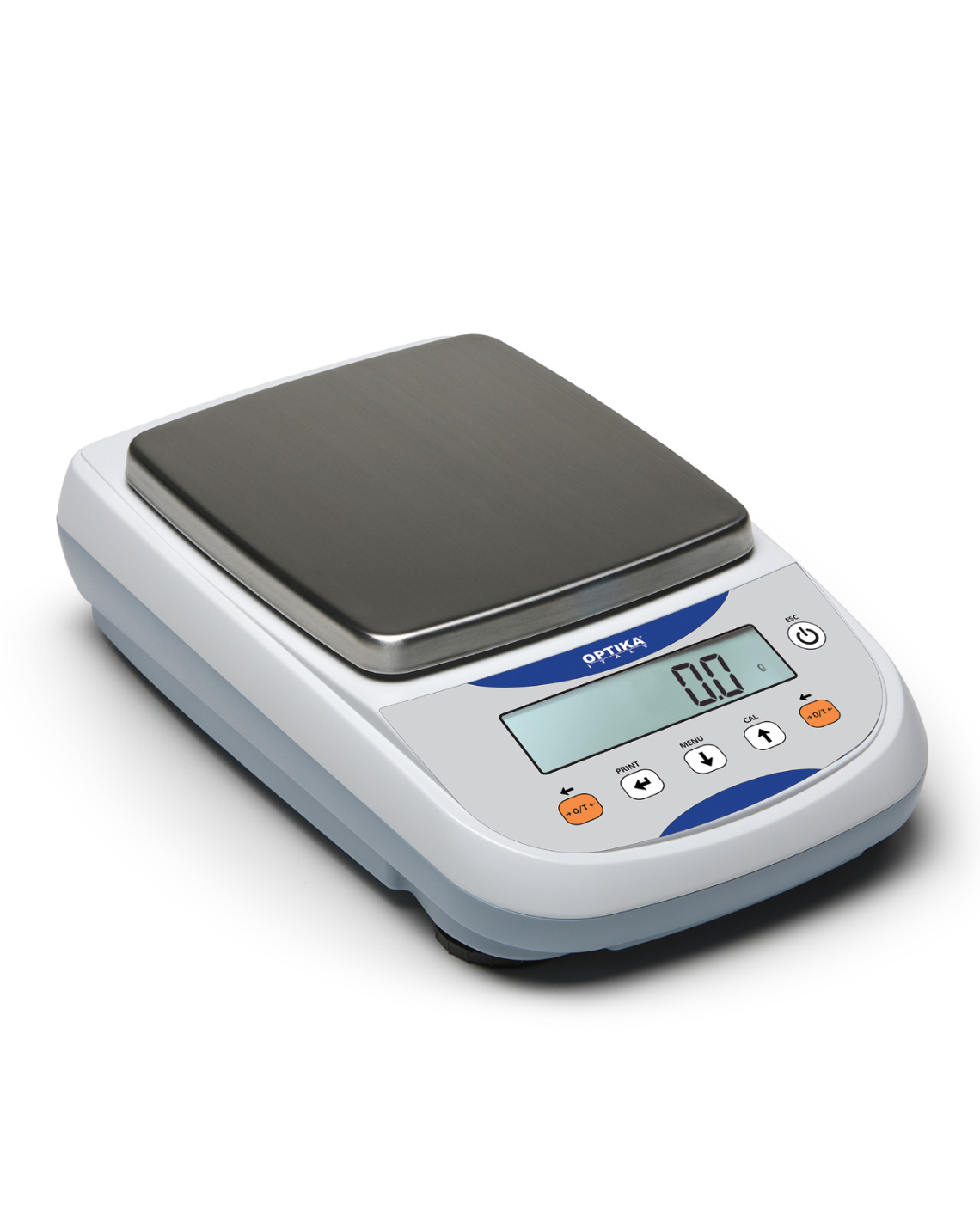

G SERIES – 0,1g

G Series balances are a synthesis of design, performance and convenience. Thanks to a sophisticated software and to a high-performance load cell, these balances deliver top performance at competitive prices. Double case structure, ergonomic keypad, maximum capacity 20Kg. Many embedded advanced features make them perfect for your work.



Related Documents:

Icon OPTIKA - Balances Catalogue - 1.87 MB
Icon OPTIKA - Serie B-C-CH-D-E-EH-F-G - Instruction Manual - EN - 2.05 MB
Icon OPTIKA - Serie B-C-CH-D-E-EH-F-G - Instruction Manual - IT - 2.19 MB
Icon OPTIKA - Serie B-C-CH-D-E-EH-F-G - Instruction Manual - ES - 2.47 MB
Icon OPTIKA - Serie B-C-CH-D-E-EH-F-G - Instruction Manual - FR - 2.70 MB
Icon OPTIKA - Serie B-C-CH-D-E-EH-F-G - Instruction Manual - PT - 2.54 MB
Icon OPTIKA - Serie - B-C-CH-D-E-EH-F-G-BG-CG- CGH-DG-EG-EGH-FG-GG - Quick Guide - EN - IT - PT - 1.20 MB



Get a quote

(1) Optional external battery pack (CNS015)

Features

Images are for illustrative purposes only

» High resolution load cell weighing system
» External calibration
» LCD with backlight with adjustable contrast
» Plastic protection cover
» Under hook weighing

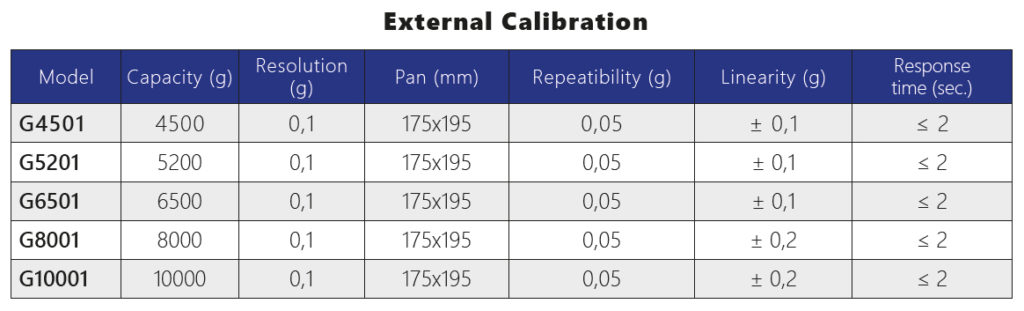

Technical Data

Technical data
Common features
• Span drift (+ 10…+ 30 °C): +/- 6ppm/°C
• Dimensions LxWxH (mm): 345x215x100
• Power supply 110-230Vac, 50/60Hz; output 9V 1,2A 10VA
• Net Weight: 3,5Kg

Accessories

• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• Serial Printer STAT, with Stastistics functions (CNS022)
• Portable rechargeable battery pack (CNS015)
• Alphanumeric external keyboard (CNS005)
• Density KIT for solids and liquids (CNS002)
• Serial to USB converter (CNS1002)
• Serial cable for serial output to printer or PC (CNS743)
• Factory Calibration certificate (CNS0333)
• Comunication KIT for balances (CNS0476)
