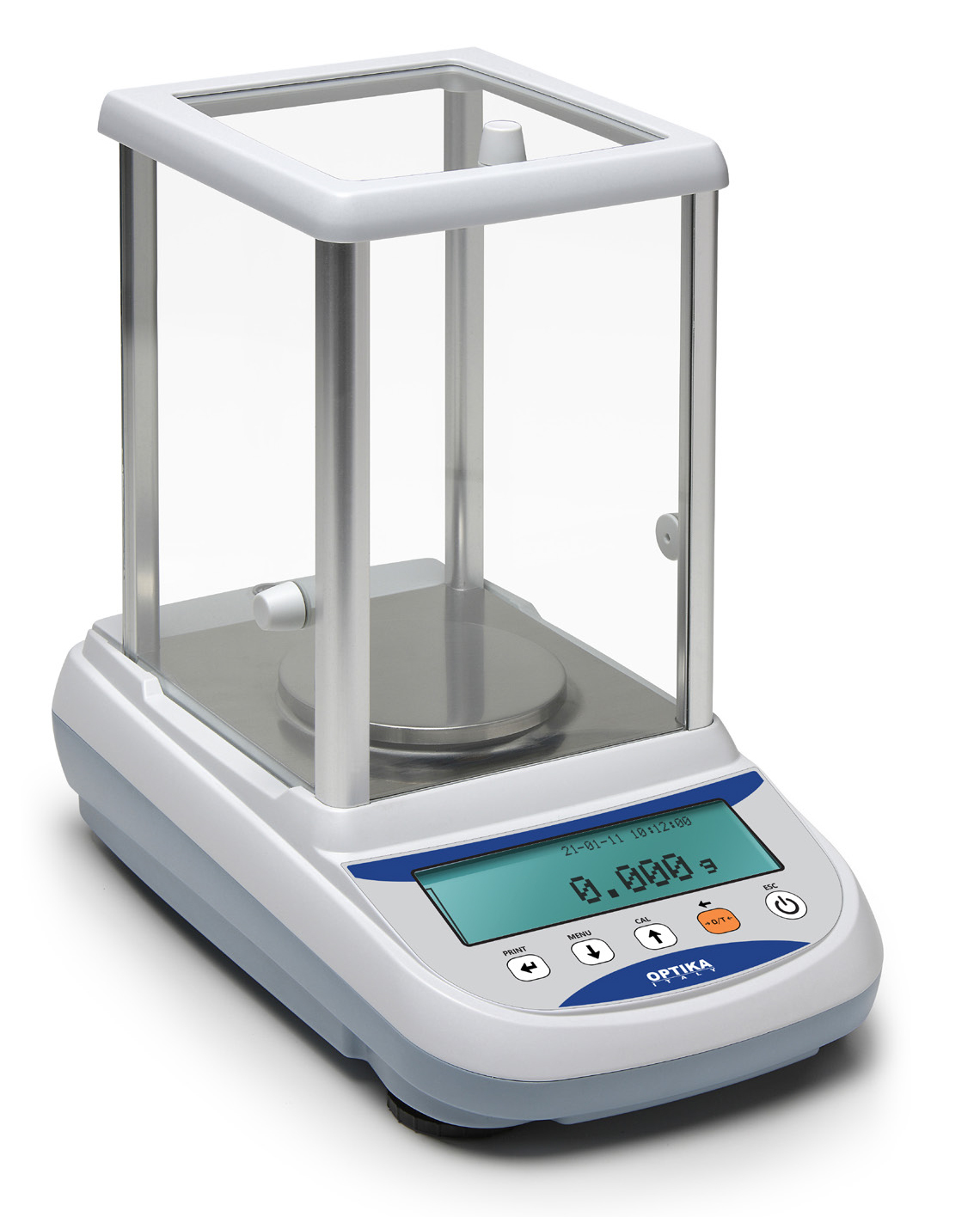

CGH SERIES – 0,001g

Equipped with a large glass draught shield, CGH balances have an extensive recipe database and many embedded advanced features make them perfect for use in laboratory, research  departments, formulation and quality control applications.



Related Documents:





(1) Not available for verified models
(2) To order Verification please add -M to name, e.g. B214Ai-M

Images are for illustrative purposes only

» Electromagnetic force restoration weighing system
» External or automatic internal calibration
» Recipe database: 99 recipes can be stored, each with up to 20 ingredients
» Large Graphic display allows efficient and easy operations
» Multilanguage: EN-DE-FR-IT-ES-PT
» GLP/ISO record keeping of weight values with date, time and serial number
» Large glass draught shield with 3 sliding doors for easy access to the items
» Plastic protection cover
» Under hook weighing (1)

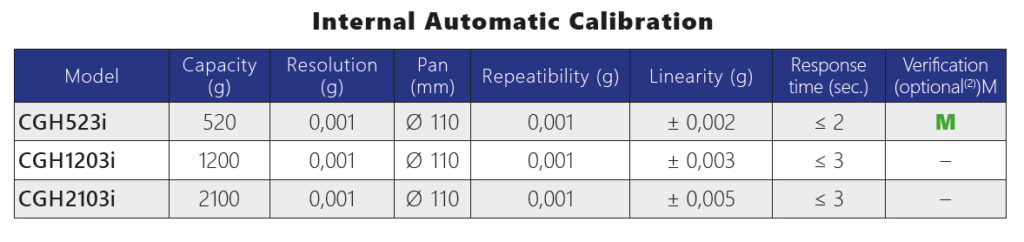

Technical data
• Span drift (+ 10…+ 30 °C): +/- 4ppm/°C
• Dimensions LxWxH (mm): 345x215x345
• Weighing chamber dimensions LxWxH (mm): 162x171x225
• Power supply 110-230Vac, 50/60Hz; output 24V 500mA 13VA

External calibration models
Net Weight: 6,1Kg

Internal calibration models
Net Weight: 6,3Kg

• Portable ioniser Ion-A15 (CNS0371)
• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• Density KIT for solids and liquids (CNS002)
• Density KIT for solids (CNS001)
• Alphanumeric external keyboard (CNS005)
• Serial to USB converter (CNS1002)
• Serial cable for serial output to printer or PC (CNS743)
• Factory Calibration certificate (CNS0333)
• Conformity Declaration (Verification(2))
