HC Series – 0,01g – 0,1g – 0,5g – 1g

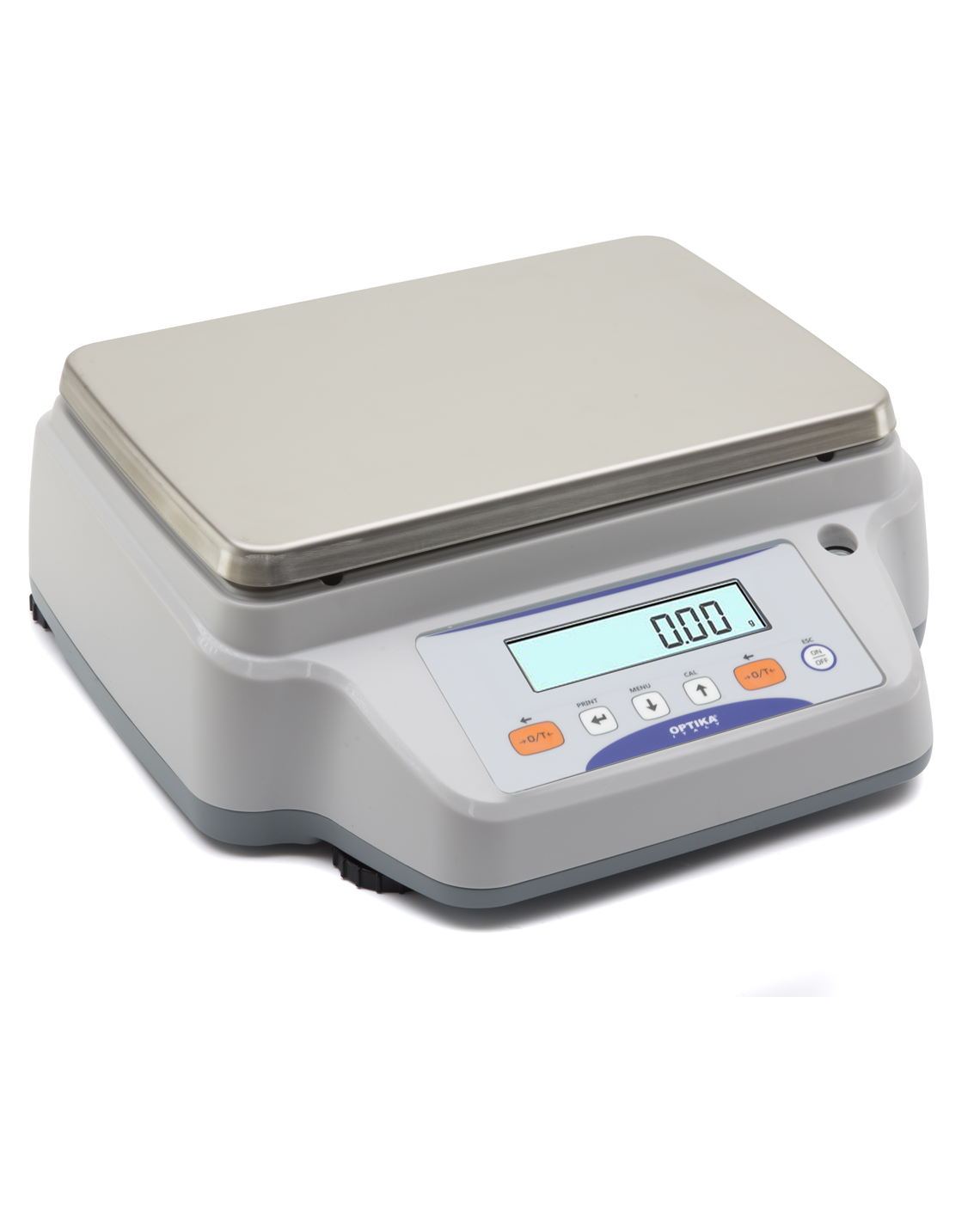

The new HC high capacity balances bring robustness, reliability and a high level of performance.
HC serie is synthesis of design, performance and convenience. The models are equipped with LCD display, with solid structure and ergonimc keypad these balances deliver top
performance at competitive prices.
These balances are an ideal instrument of work for many applications inside and outside
laboratory and factory.


Related Documents:


(1) Optional external battery pack (only for 9V models) (CNS015)

Images are for illustrative purposes only

• Electromagnetic force restoration weighing system (for 0,01g resolution)
• High readability load cell weighing system (for 0,1g resolution)
• External calibration
• LCD with backlight with adjustable contrast
• Plastic protection cover
• Under hook weighing

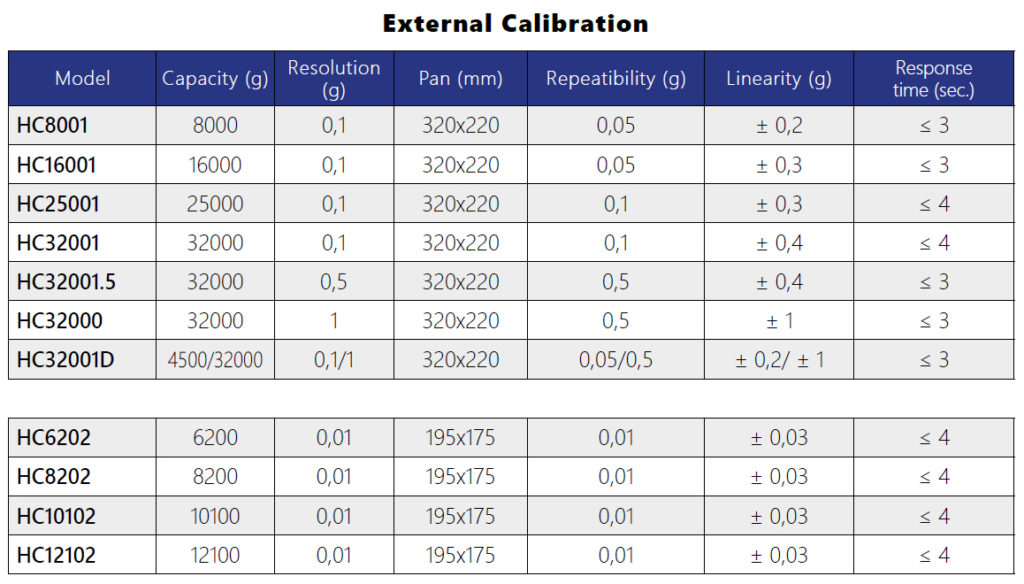

Technical data
• Span drift (+ 10…+ 30 °C): +/- 6ppm/°C
• Dimensions LxWxH (mm): 360x355x130
• Power supply 110-230Vac, 50/60Hz;
output 9V 1,2A 10VA
• Power supply 110-230Vac, 50/60Hz;
output 24V 1A 13VA (0,01g res)
• Net Weight: 8Kg (0,01 res), 7,5 kg

• Ioniser Ion-A15 (CNS0371)
• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• PC data collection software (CNS0476)
• Portable rechargeable battery pack (CNS015)
• Serial to USB converter (CNS1002)
• Serial cable for serial output to printer or PC (CNS743)
• Factory Calibration certificate (CNS0333)
