T GRAPHIC SERIES
– 0,0001g – 0,001g – 0,01g

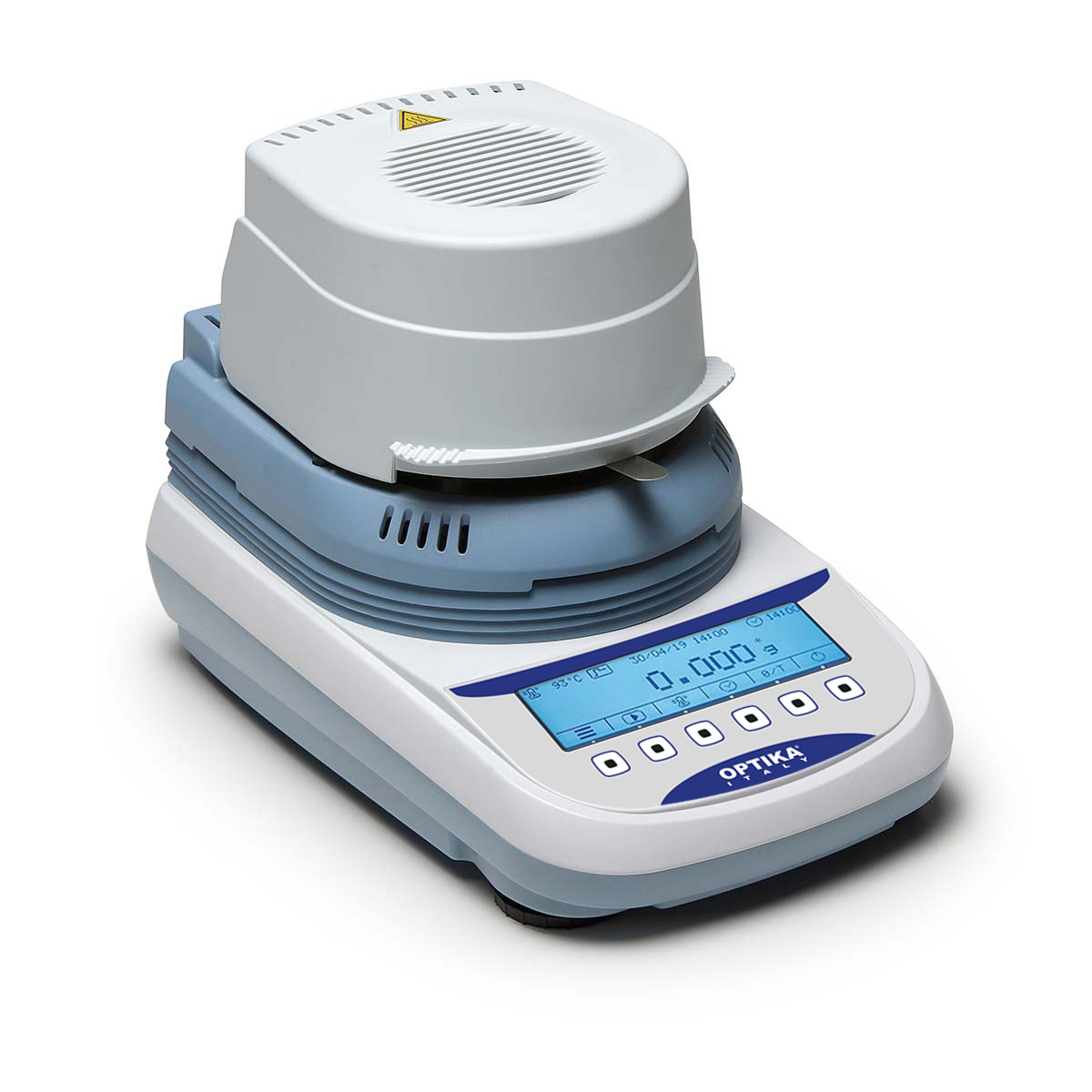

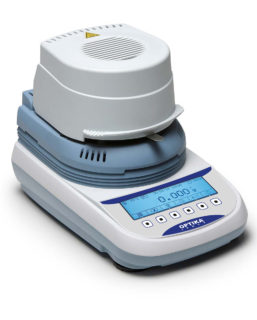

The new T GRAPHIC Series  are rugged instruments for moisture determination of raw materials and finished samples in the food, cosmetics, ceramics, agriculture and construction industry.
The Dot Matrix graphical display with backlite makes much easier and friendly using the instrument and gives easy and intuitive guidance through the operating process thanks also to his advanced software. On the display are shown all the parameters regarding the drying process and all the relative results, all viewable at once.
This instrument brings features such as one key pressing for starting automatically the last drying cycle memorized or the default one, possibility to print the drying session by interval time set by the user, automatic session starting just by closing the heater etc…
Drying readability are 0,001%, 0,01% and 0,1%. Possibility of calibrating the internal thermometer  (with optional KIT CNS02).



Related Documents:





Images are for illustrative purposes only

» Electromagnetic force restoration weighing system (TA64MG and T163MG)
» High readability load cell weighing system (T163LG and T62LG)
» Halogen-infrared lamp
» Large Graphic display allows efficient and easy operations
» Date and time indication
» Multilanguage: EN-DE-FR-IT-ES-PT
» GLP/ISO record of last stored calibration data
» Two heating modes: standard and rapid
» Pre-heating on/off
» Time (1-99 min) and Autostop operating modes
» Temperature range: 35-160°C/1°C
» Moisture, dry residue in percentage and ATRO indications
» RS232 serial interface
» View and print the moisture analyzer and heater’s last stored calibraion data
» Measuring unit g or mg

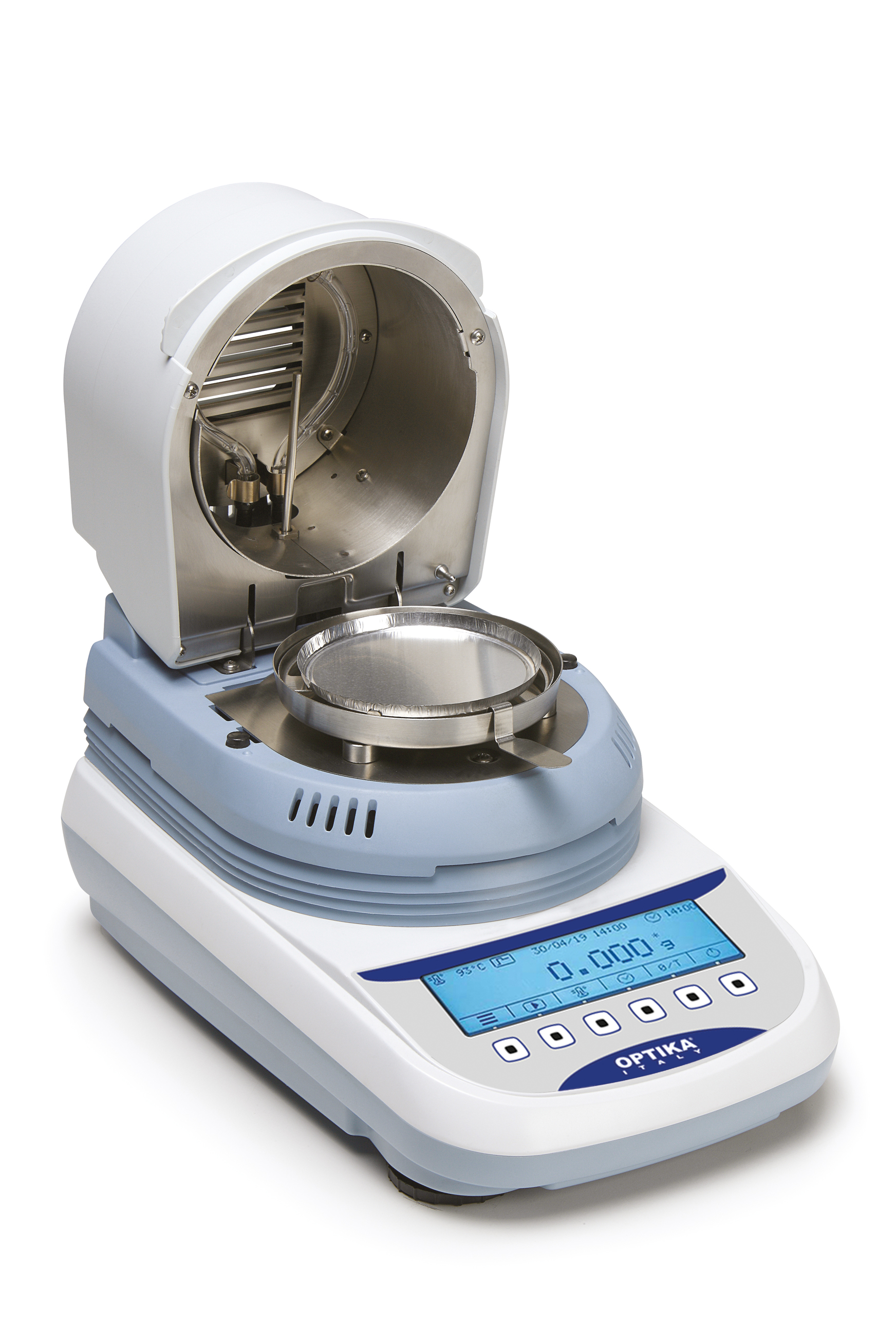

» Automatic starting of sessions by closing the heater
» Plastic protection cover

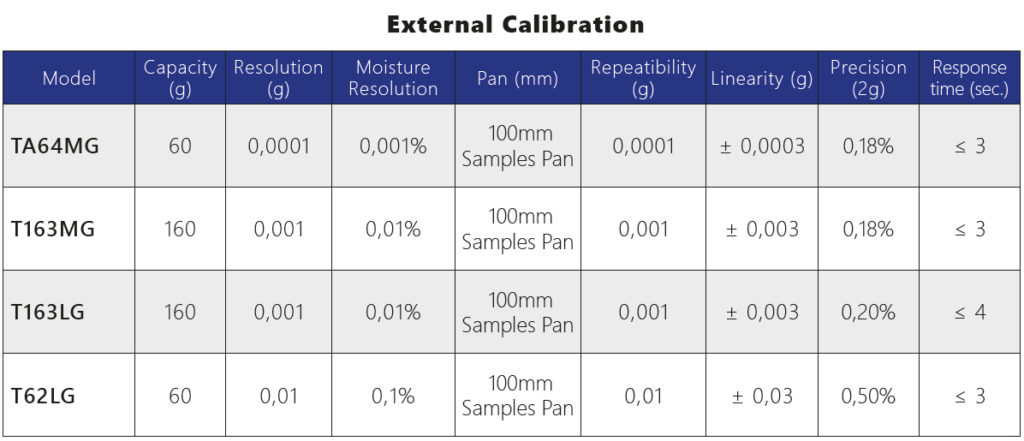

Technical data

  • Span drift (+ 10…+ 30 °C): +/- 3ppm/°C [TA64MG]; +/- 4ppm/°C [other models]
  • Dimensions LxWxH (mm): 345x215x235
  • Maximum dimension of container on the pan: 100mm (Ø) x 25mm (height)
  • Power supply 110-230Vac, 50/60Hz; output 24V 1A 13VA [TA64MG]; output 9V 1,2A 10VA [other models]
  • Heater: 230V AC 50/60Hz, 400Watt
  • Net Weight: 6,1Kg (TA64MG and T163MG)

• Portable ioniser Ion-A15 (CNS0371)
• Thermometer calibration KIT (CNS02)
• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• Serial to USB converter (CNS1002)
• Serial cable for output to printer/PC (CNS743)
• Test pans (Ø 100mm x 0,5mm) (CNS753)
• Fiber glass test panz Ø 90 (CNS026)
• Factory Calibration certificate (CNS0333)
