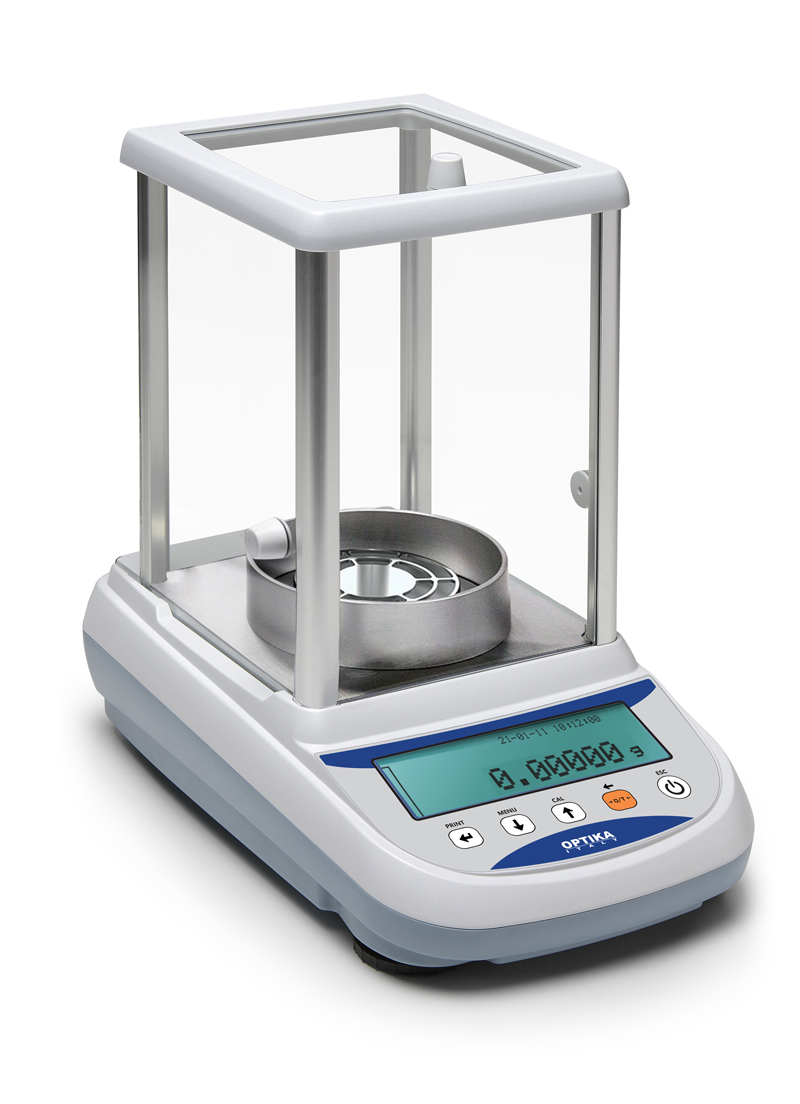

SMG SERIES – 0,01mg

The OPTIKA series of SemiMicro SMG balances is equipped with the new highly integrated electromagnetic cell, with automatic internal calibration on all models, they are characterized by a high level of precision and repeatability.
All SMG models are equipped with the large graphic display for easy operations.
As in the tradition of OPTIKA products, SemiMicro SM balances deliver an excellent performance/price ratio.



Related Documents:





Images are for illustrative purposes only

» Electromagnetic force restoration weighing system
» Highly integrated weighing cell
» Recipe database: 99 recipes can be stored, each with up to 20 ingredients
» Large Graphic display allows efficientand easy operations
» Multilanguage: EN-DE-FR-IT-ES-PT
» GLP/ISO record keeping of weight values with date, time and serial number
» Large glass draught shield with 3 sliding doors for easy access to the items being weighed
» Plastic protection cover

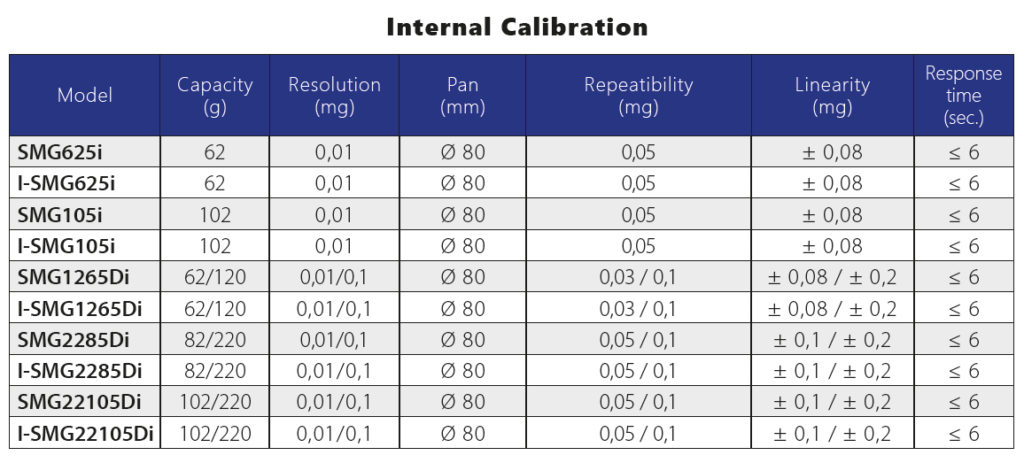

Balance technical data
• Span drift (+ 10…+ 30 °C): +/– 2ppm/°C
• Dimensions LxWxH (mm): 345x215x345
• Weighing chamber dimensions LxWxH (mm): 162x171x225
• Dimensions of external electronics box LxWxH: 175x105x50 (mm), weight 500g
• Power supply 110-230Vac, 50/60Hz; output 24V 500mA 13VA
• Net Weight: 7Kg

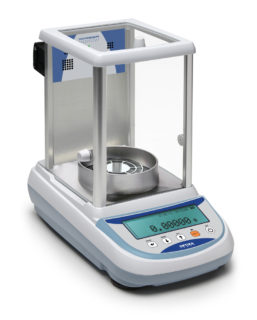

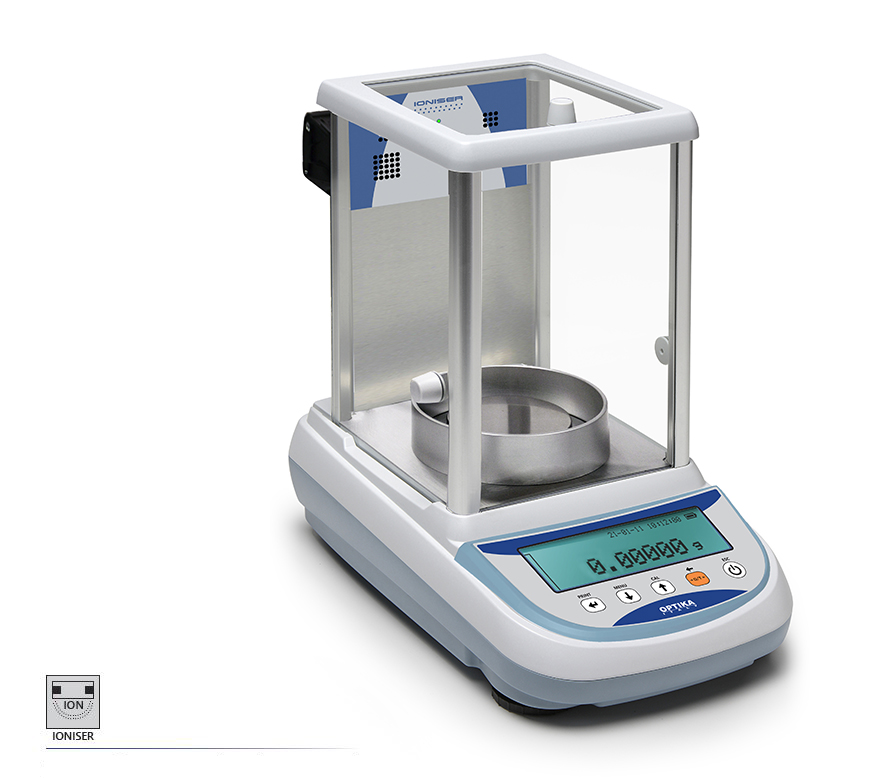

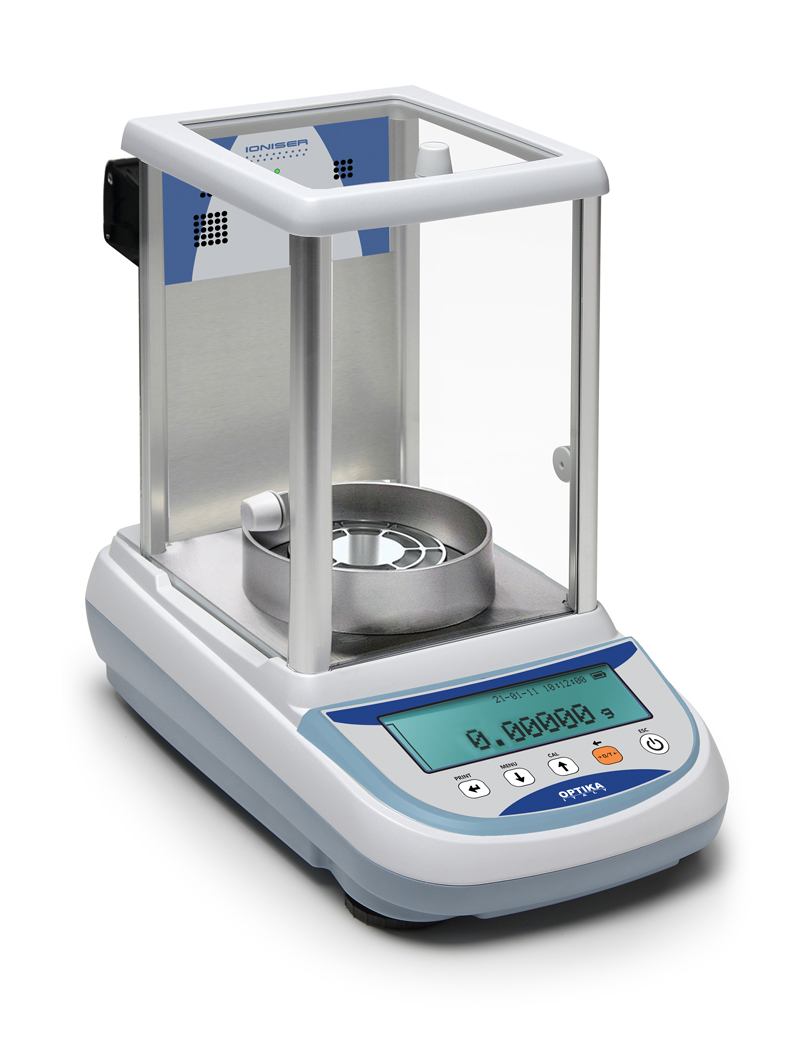

Ioniser technical data
• Operation modes: 2 minutes or continuosily for max 8 hours
• Ozone concentration: 0-0.05 ppm (2cm from ion source)
• Distance sample-ion source: about 5-40 cm
• Discharge time: 9s/5cm, 13s/10cm
• Ambient conditions: 0-50°C, 20-80% air humidity (non-condensing)
• Ioniser Power supply: IN AC 100-240V 50/60Hz, OUT DC 12V, 500mA

• Portable ioniser Ion-A15 (CNS0371)
• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• Density KIT for solids and liquids (CNS002)
• Alphanumeric external keyboard (CNS005)
• Serial to USB converter (CNS1002)
• Serial cable for serial output to printer or PC (CNS743)
• Factory Calibration certificate (CNS0333)
